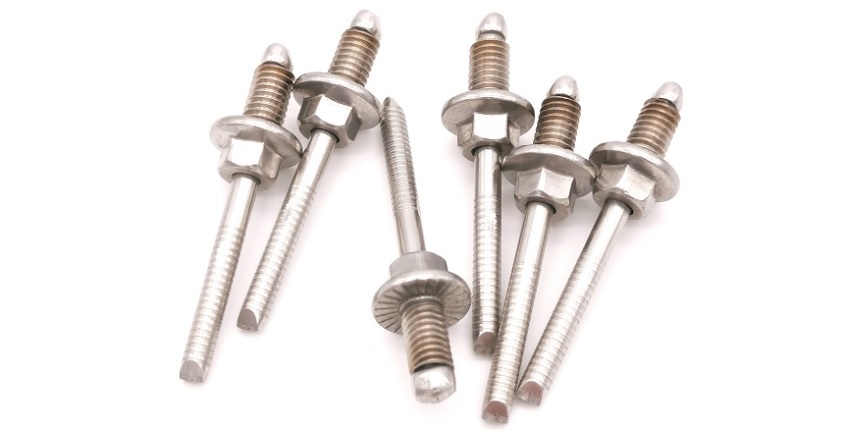

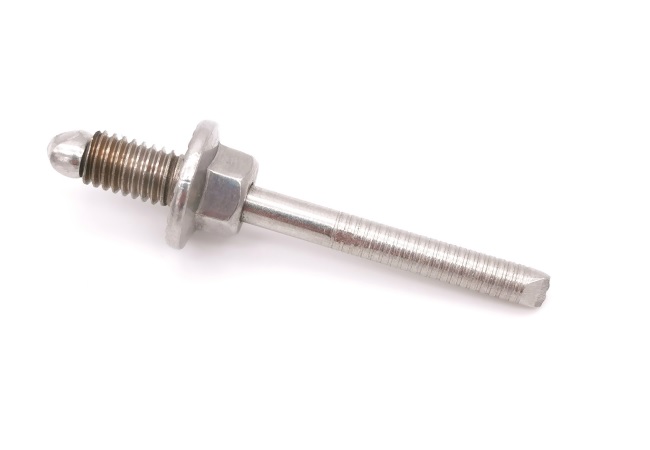

The blind Panel Rivets from Tengri Fasteners are used to attach brackets on the back of cladding panels and are recommended by leading international panel manufacturers. Panels 8 to 13 mm thick can be attached. Installation can be performed quickly and securely without using special tools.
The blind Panel Rivets can be removed once if required.

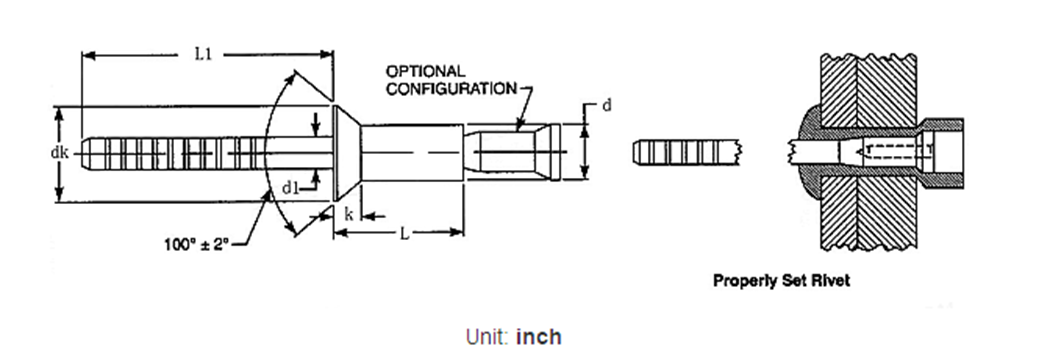

| Size | 6# | 8# | ||||
| d | Nominal Size | 3/16 | 1/4 | |||
| max | 0.193 | 0.26 | ||||
| min | 0.184 | 0.254 | ||||
| dk | max | 0.36 | 0.448 | |||
| min | 0.325 | 0.395 | ||||
| k | 0.07 | 0.079 | ||||
| d1 | max | 0.12 | 0.162 | |||
| min | 0.114 | 0.153 | ||||
| L1 | min | 1 | 1 | |||
