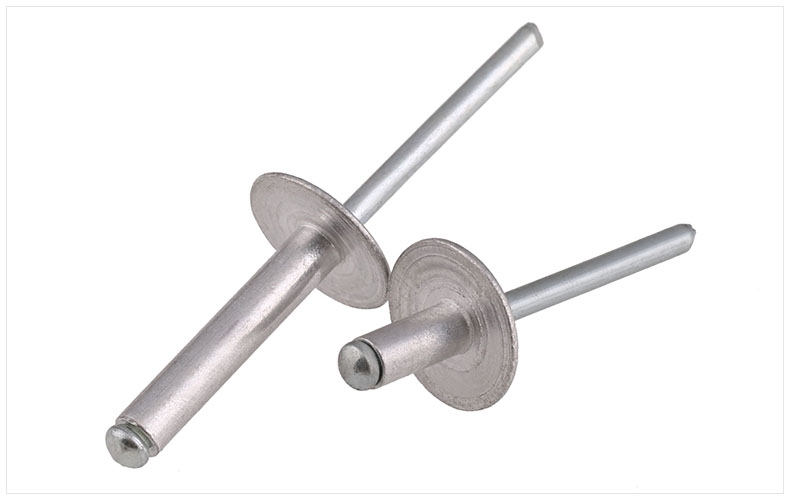

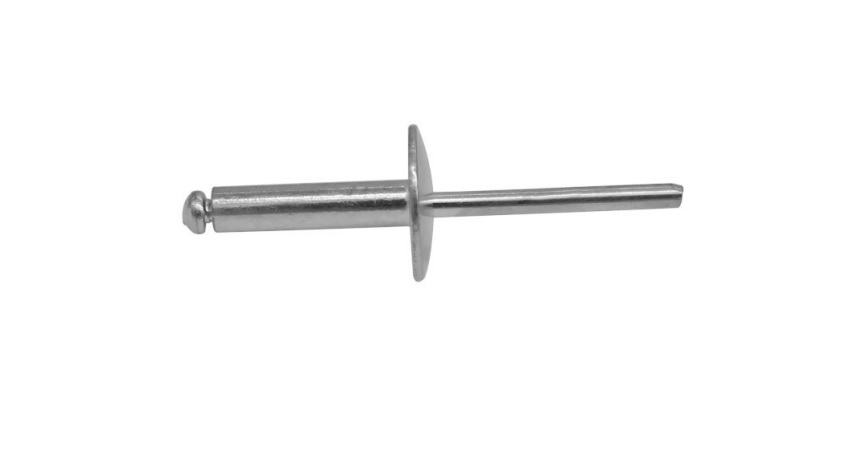

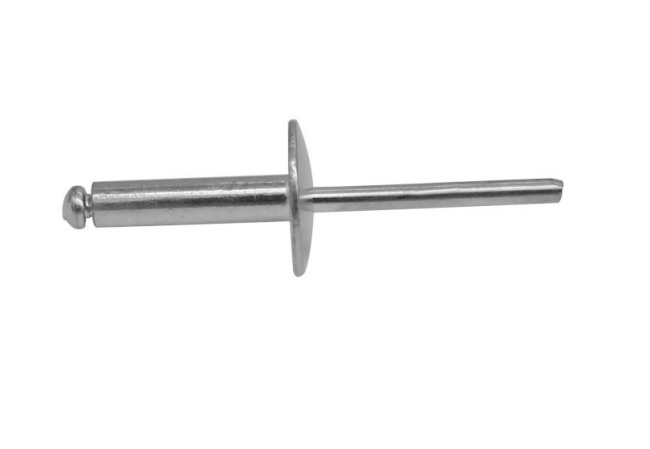

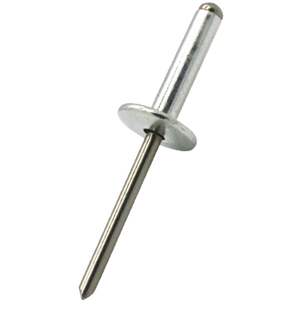

Large flange rivet

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Dome head rivet, Q style rivets

  • Surface:

    Black Oxide, Brass, Nickel, Passivation, Tin, Zinc Clear, Zinc Yellow, Zinc Black

  • Material:

    Aluminum/Aluminum,Aluminum/Steel,Steel/Steel,
    Stainless/Stainless,Stainless/Steel,Copper/Steel,
    Copper/Steel

  • Size:

    Φ3.2-Φ6.4,3/32-1/4,Custom-made

  • MOQ:

    According to size
inquiry now
product details

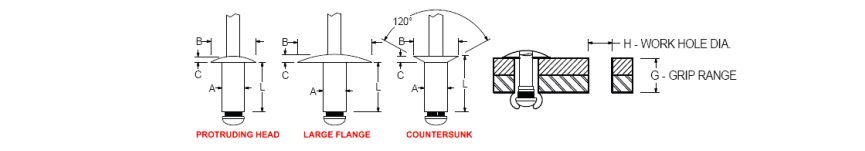

Large Flange style are similar to dome style but the head diameter is larger.

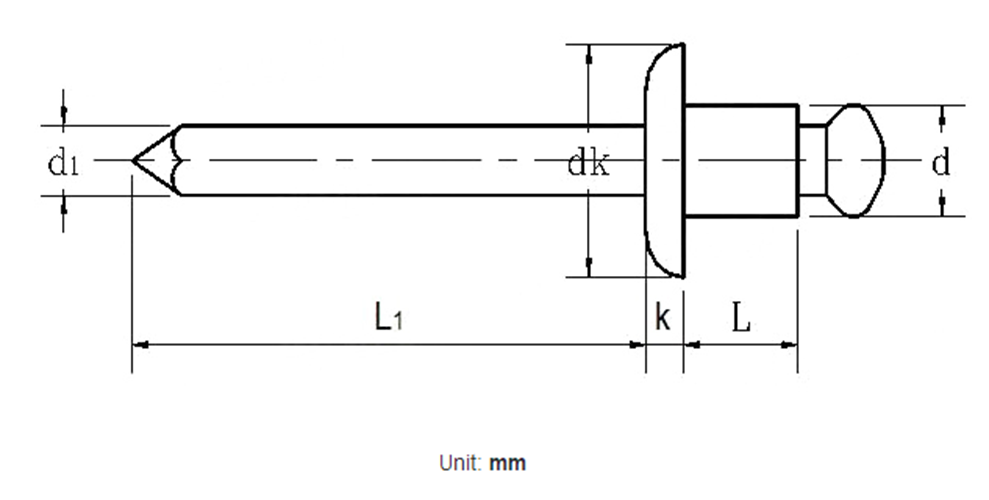

Screw Thread d 3.2 Φ4 Φ4.8
d1 max 2.15 2.75 3.2
L1 25 27 27
k max 2 2.2 2.5
dk 9.5 12 16
L Max 16 25 35
