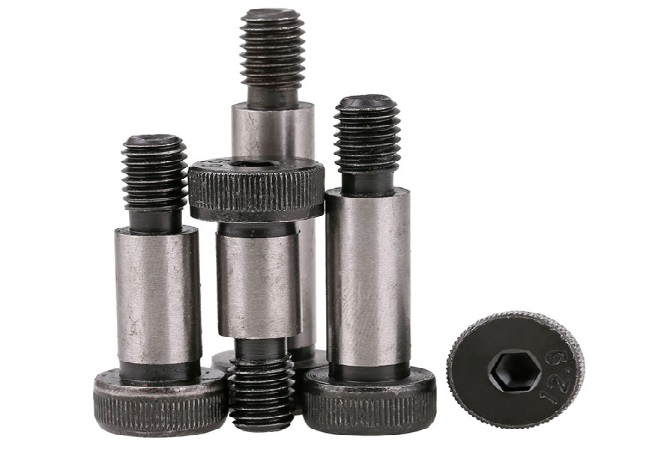

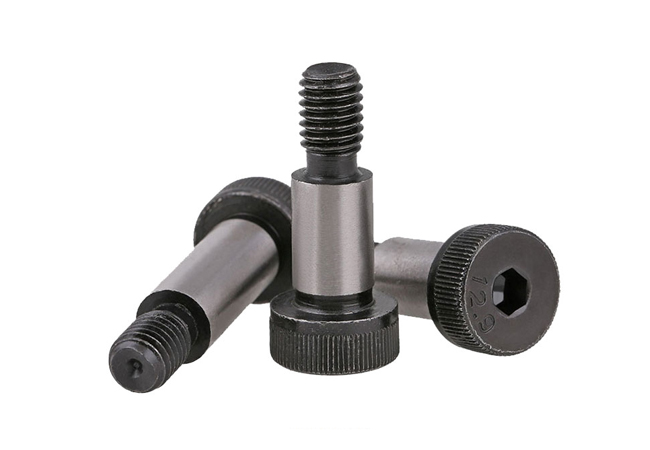

Inner hexagon plug shaft shoulder, ISO 7379 - 1983, available for ISO ROHS,SGS,

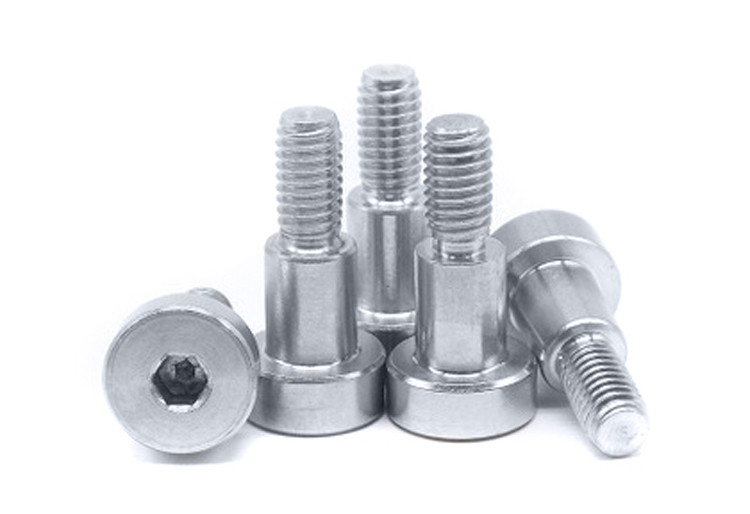

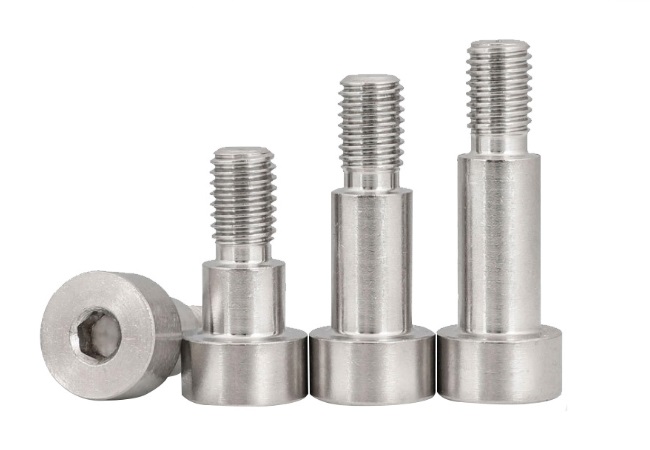

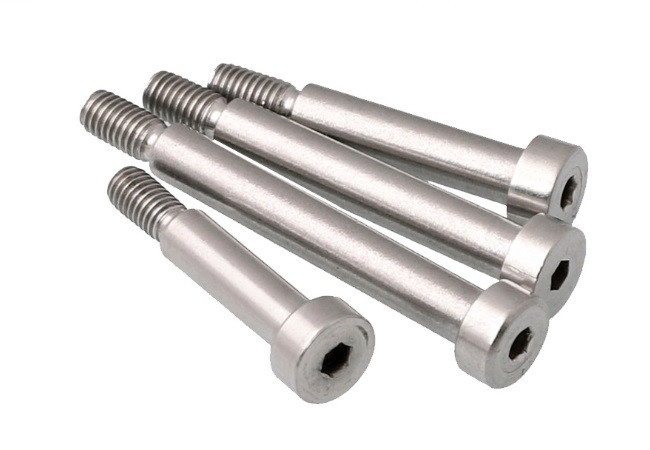

With a hex socket at the tip as well as the head, you can fasten these shoulder screws from the tip when the head cannot be reached. Made from 18-8 stainless steel, they have good chemical resistance and may be mildly magnetic. A standard shoulder with an undersized tolerance allows them to fit most machinery and equipment. They’re often used to guide or align components, and as an axle or pivot point.

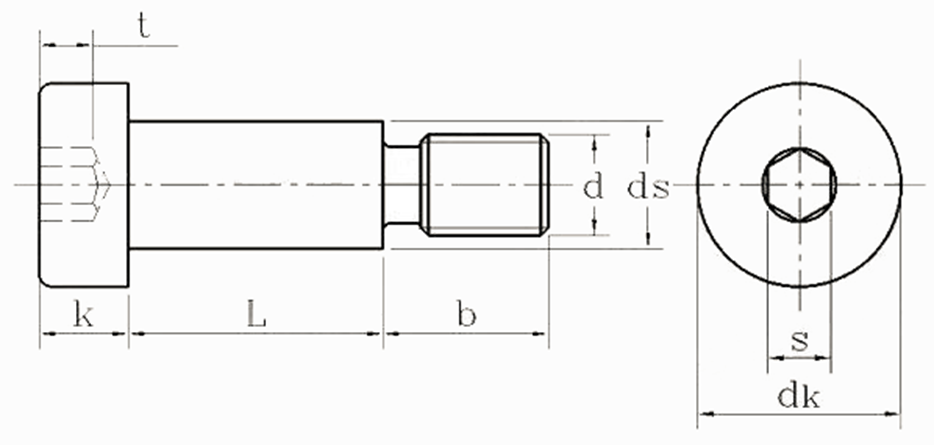

| Screw Thread d | M5 | M6 | M8 | M10 | M12 | M16 | M20 | ||
| P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| ds | Nominal Size | 6.5 | 8 | 10 | 13 | 16 | 20 | 25 | |
| max | 6.487 | 7.987 | 9.987 | 12.984 | 15.984 | 19.98 | 24.98 | ||
| min | 6.451 | 7.951 | 9.951 | 12.941 | 15.941 | 19.928 | 24.928 | ||
| b | max | 9.75 | 11.25 | 13.25 | 16.4 | 18.4 | 22.4 | 27.4 | |
| min | 9.25 | 10.75 | 12.75 | 15.6 | 17.6 | 21.6 | 26.6 | ||
| dk | For plain heads | max | 10 | 13 | 16 | 18 | 24 | 30 | 36 |
| For knurled heads | max | 10.22 | 13.27 | 16.27 | 18.27 | 24.33 | 30.33 | 36.39 | |
| min | 9.78 | 12.73 | 15.73 | 17.73 | 23.67 | 29.67 | 35.61 | ||
| k | max | 4.5 | 5.5 | 7 | 9 | 11 | 14 | 16 | |
| min | 4.32 | 5.32 | 6.78 | 8.78 | 10.73 | 13.73 | 15.73 | ||
| s | Nominal Size | 3 | 4 | 5 | 6 | 8 | 10 | 12 | |
| max | 3.08 | 4.095 | 5.095 | 6.095 | 8.115 | 10.115 | 12.142 | ||
| min | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | ||
| t | min | 2.4 | 3.3 | 4.2 | 4.9 | 6.6 | 8.8 | 10 | |
