Eye bolt anchor

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    eye bolt anchor, sleeve anchor

  • Surface:

    Black oxide,Nickel, possivation,Tin, Zinc Clear, Zinc Yellow, Zinc black

  • Material:

    stainless steel304,316,316L,317,317L,carbon steel,etc

  • Size:

    M6-M12,Custom-made

  • MOQ:

    According to size
inquiry now
product details

Eye bolts are primarily used as an anchor point for connection of wire rope and other rigging hardware to a fixed ending point. Intended for straight line pulls only. For angled pulls, choose a Shoulder Eye Bolt.

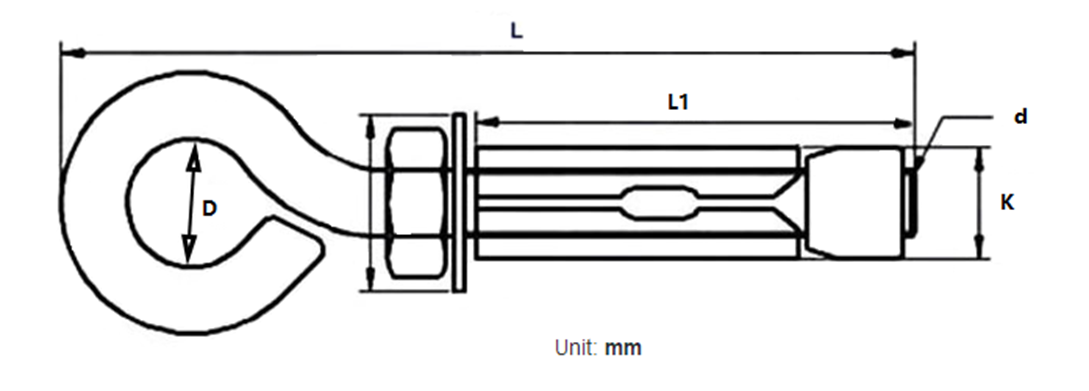

Screw Thread d M6 M8 M10 M12
L 60 80 90 100
L1 46 58.5 70 72.5
D 12 15 20 26.5
K 8 10 12 16
