Dowel Screws

  • Brand:

    T,TGR,XDM,OEM as requirement

  • Brief:

    Color-Zinc Plated Double Head Hanger Bolts,Hanger Screw

  • Surface:

    Polishing; Anodize; Nickel, Zinc, Black,Tin, chrome,Silver plating ,Heat treatment: Point hardening,quenching hardening

  • Material:

    Stainless steel 304,316,316L,410,Duplex2205,2507,Carbon steel 4.8/8.8/10.9/12.9grade

  • Size:

    Customized

  • MOQ:

    Feel free to contact us for further inquiry.
inquiry now
product details

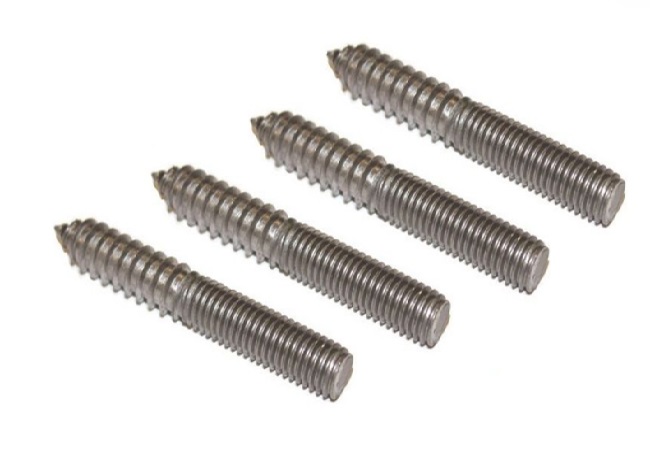

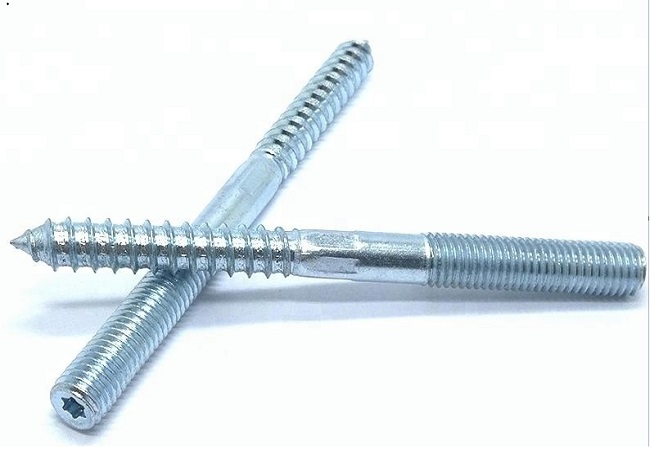

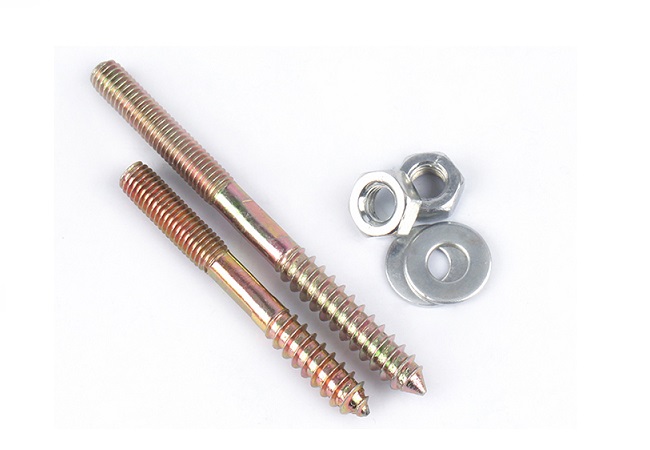

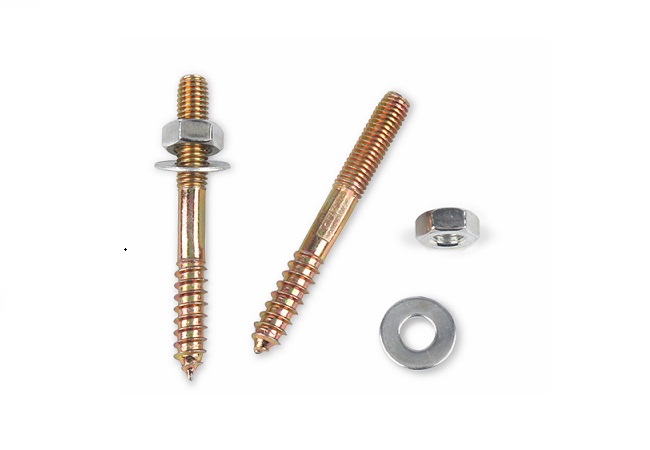

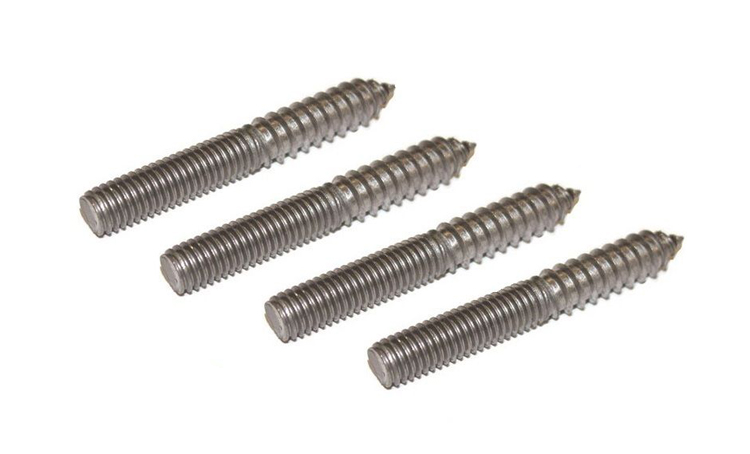

Hanger bolts ideal for hanging materials from wooden structures, walls, or overhead
Zinc-plated steel offers lasting corrosion resistance and durability
Install by driving the sharp pointed end into a pre-drilled hole
Commonly used in furniture assembly as well as to suspend electrical wiring or sheet metal

Diameter & Thread Pitch Standard Length
(C) 		Machine Thread Length
(A) 		Lag Thread Length
(B) 		 Center Space
(D)
6-32 5/8  1/4 3/8  -
3/4 3/8 3/8  -
7/8 1/4 5/8  -
1 3/8 5/8  -
 8-32 5/8  1/4 3/8 -
3/4 3/8 3/8 -
7/8 1/4 5/8 -
1 3/8 5/8 -
1-1/4 5/8 5/8 -
1-1/2 5/8 7/8 -
1-3/4 3/4 1 -
2 1 1 -
 10-24 1 3/8 5/8 -
1-1/4 5/8 5/8 -
1-1/2 5/8 7/8 -
1-3/4 3/4 1 -
2 1 1 -
2-1/2 1 1-1/2 -
3 1-1/2 1-1/2 -
3-1/2 1-1/2 2 -
1-4/20 1  3/8 5/8 -
1-1/4 5/8 5/8 -
1-1/2 5/8 7/8 -
1-3/4 3/4 1 -
2 1 1 -
2-1/4 1 1-1/4 -
2-1/2 1 1-1/2 -
2-3/4 1-1/4 1-1/2 -
3 1-1/2 1-1/2 -
3-1/2 1-1/2 2 -
4 2 2 -
4-1/2 1-1/8 3 3/8
5 1-3/8 3 5/8
6 1-1/2 3 1-1/2
 5/16-18 1-1/2 5/8 7/8 -
1-3/4 3/4 1 -
2 1 1 -
2-1/4 1 1-1/4 -
2-1/2 1 1-1/2 -
2-3/4 1-1/4 1-1/2 -
3 1-1/2 1-1/2 -
3-1/2 1-1/2 2 -
3-3/4 1-3/4 2 -
4 2 2 -
 4-1/2 1-1/8 3 3/8
5 1-3/8 3 5/8
5-1/2 1-1/2 3 1
6 1-1/2 3 1-1/2
3/8-16      1-1/2 1/2 1 -
2 1 1 -
2-1/2 1 1-1/2 -
3 1-1/2 1-1/2 -
3-1/2 1-1/2 2 -
4 2 2 -
4-1/2 1-1/8 3 3/8
5 1-3/8 3 5/8
5-1/2 1-1/2 3 1
6 1-1/4 3 1-3/4
8 2-1/2 3 2-1/2
10 2-1/2 3 4-1/2
12 2-1/2 3 6-1/2
14 2-1/2 3 8-1/2
1-2/13 3 1 2 -
3-1/2 1-1/2 2 -
4 2 2 -
5 2 3 -
6 2-1/2 3 1/2
8 2-1/2 3 2-1/2
10 2-1/2 3 4-1/2
12 2-1/2 3 6-1/2
